All-in-one windows OS computer embeded,Intel i3, i5, i7 processor RAM4G/8G, ROM128G / 256G/ 512G;
32inch capactive touch screen with10 points touch, by finger touch or touch pen (default 1 touch pen inside the package);
1920*1080P resolution, (bespoke 4K screen available);
Electric height adjustment, freely adjutable height of digital podium;
Foldable storage trays on both sides of the digital podium;
32inch Large screen display simoultanously same with small screen 10.1inch monitor
Digital podium can easily connect to large screens ,such as projectors, interactive flat panels, and LED video wall, LCD video wall
High speaker-built in 2*10W speaker;
LED backlight screen-long lifetime 50000hours.
Multi connecting ports (HDMI, VGA, MIC, AUDIO etc)
Description

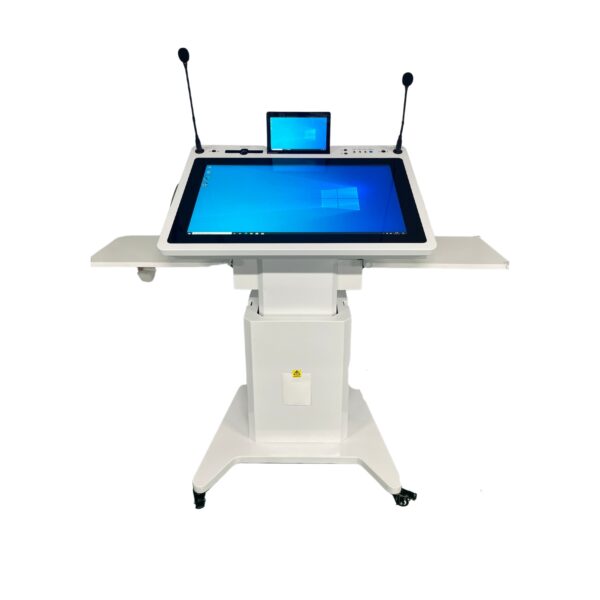

Elevate your teaching and presentation experience with our cutting-edge Digital Podium, designed to simplify and enhance your workflow. This state-of-the-art podium integrates a powerful Windows computer, dual gooseneck microphones, and a responsive 32-inch PCAP touch screen, offering a seamless and intuitive platform for educators and presenters.
Key Features:
**Integrated Windows Computer:** Powered by Intel i3, i5, or i7 processors, with options for 4GB/8GB RAM and 128GB/256GB/512GB storage, this podium ensures smooth performance and ample space for all your presentation needs.

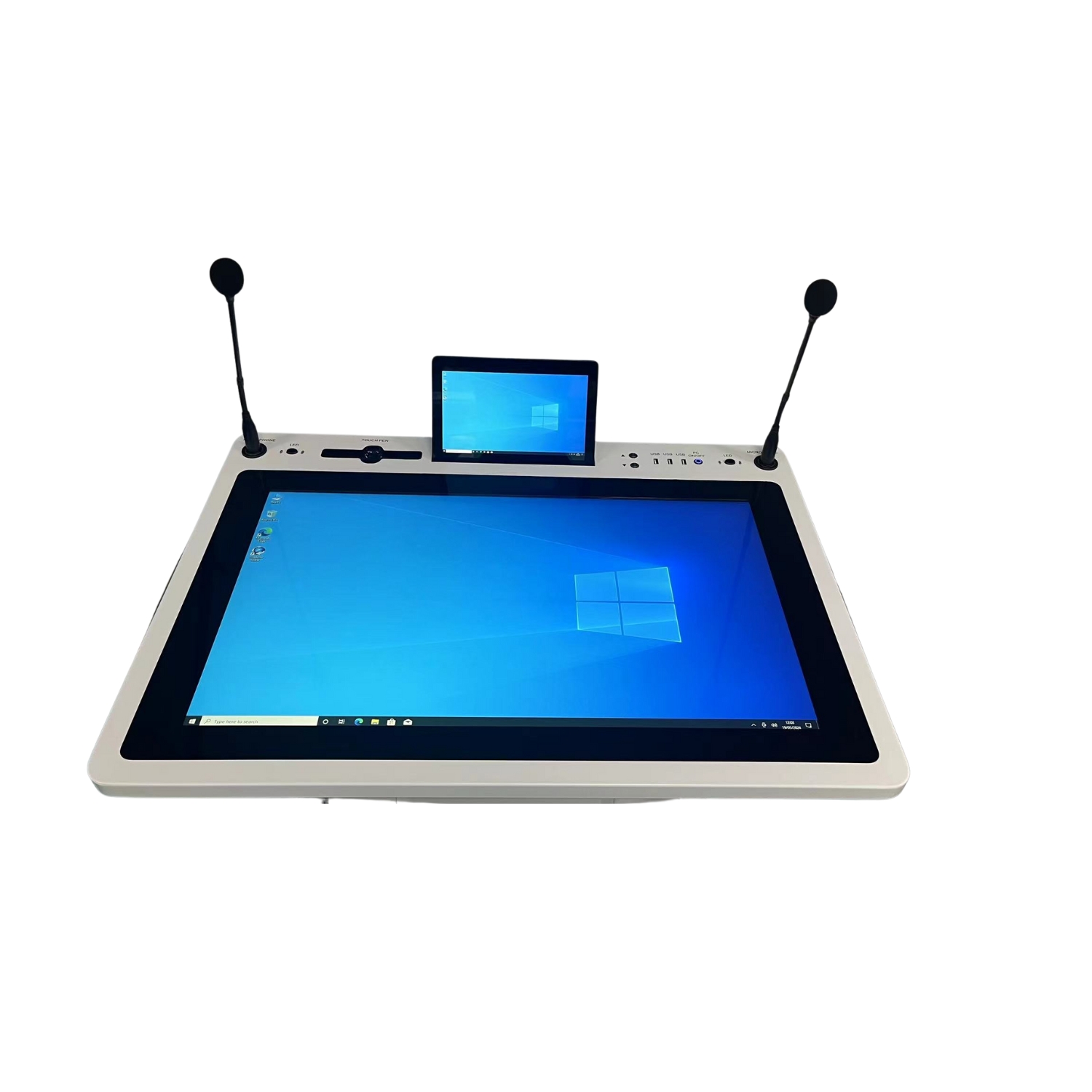

**32-Inch Capacitive Touch Screen:** The 1920x1080P HD display with 10-point touch capability offers precise control with your fingers or the included touch pen. For those seeking even more clarity, a bespoke 4K screen option is available.
– **Height Adjustable for Comfort:** With an electric height adjustment range of 0-280mm, the podium’s screen height can be easily modified between 1100mm and 1380mm, allowing presenters to find their optimal position using either the touch screen panel or a remote control.

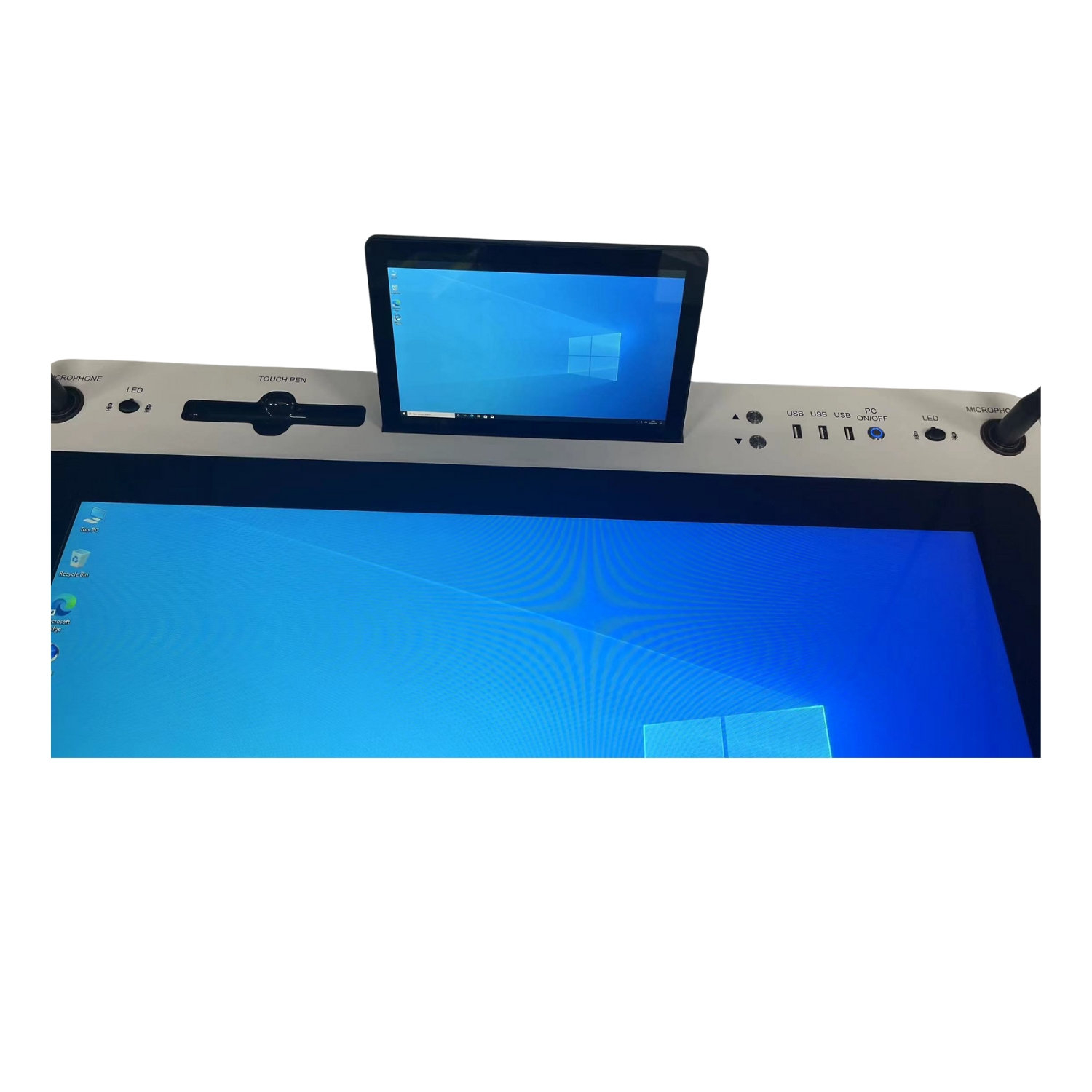

– **Dual Display Synchronization:** A 10.1-inch screen faces the presenter, mirroring the main display as a convenient reminder. An optional 21-inch digital signage display on the front of the podium can be used for welcome messages, topics, or presenter details, adding a professional touch to your presentations.
– **Versatile Connectivity:** Easily connect to external displays such as projectors, interactive flat panels, or LED video walls. The podium features multiple input and output options, including HDMI, VGA, USB ports, and XLR microphone interfaces, ensuring compatibility with a wide range of devices.
– **Enhanced Audio Experience:** Equipped with two built-in 10W speakers, the podium delivers clear, high-quality sound, making it ideal for classrooms, lecture halls, and conference rooms.
– **User-Friendly Design:** Removable and foldable storage trays on both sides provide convenient space for additional materials, while the LED backlight with a 50,000-hour lifespan ensures long-lasting visibility.
Specifications:
– **Display:** 32-inch, 1920x1080P resolution (optional 4K)
– **Processor:** Intel i3/i5/i7
– **Memory:** 4GB/8GB RAM
– **Storage:** 128GB/256GB/512GB
– **Connectivity:** HDMI, VGA, USB, XLR, 3.5mm audio, network port
– **Speakers:** 2 x 10W
– **Height Adjustment:** 0-280mm range, 1100-1380mm adjustable height
– **Additional Display:** 10.1-inch mirroring screen, optional 21-inch digital signage
Experience the future of teaching and presentations with our Digital Podium, where technology meets simplicity to deliver a truly impactful presentation tool.
See how it works on YouTube:
Detail specification.:
| Main screen32 inch Touch Screen (PCAP Interactive Display) | Screen Size | 32 inches |
| Resolution | 1920×1080 | |
| Display Size | 698*394 mm | |
| Display Color | 16.7M | |
| Viewing Angle | H:178° V:178° | |
| Brightness | 350 cd/m2 | |
| Contrast | 5000:1 | |
| Response time | 6ms | |
| 10.1inch monitor screen (Sync display screen) | Size | 10.1 inches |
| Resolution | 1280*800 mm | |
| Display Size | 216.96*149.0 mm | |
| Display Color | 16.7M | |
| Viewing Angle | H:178° V:178° | |
| Brightness | 280cd/m2 | |
| 21.5 inch Front Display Digital Signage Screen | Size | 21.5 inches |
| Resolution | 1920×1080 | |
| Display Size | 477*270 mm | |
| Display Color | 16.7M | |
| Viewing Angle | H:178° V:178° | |
| Brightness | 280cd/m2 | |
| Contrast | 5000:1 | |
| Response time | 6ms |
| 32inch PCAP Touch screen Parameter | Integration | Seamlessly built-in, embedded |
| Touch Technology | Capacitive multi-touch technology (10points touch) | |
| Writing method | Finger, pen or any other non-transparent object | |
| Response time | 5ms | |
| Positioning accuracy | ±1.5mm | |
| Touch resolution | 4096×4096 | |
| Touch effective recognition | ＞5mm | |
| Computer Response | Automatic system recognition | |
| Audio | Speaker | 2×10W(8Ω) |
| Sound Mode | Stereo | |
| Power | Input voltage | AC110-220V |
| Standby power | ≤1W, support low power standby mode | |
| Rated Power | ≤76W | |
| Appearance/
Peripherals |
Tempered glass | Black tempered glass-4mm thickness |
| Material | Aluminum digital podium housing | |
| Appearance Color | White/Black (customizable) | |
| Writing touch pen | 1piece | |
| Electric Lift button | 2 (up and down key ) | |
| USB | 3 | |
| Restart switch | 1 | |
| Dual goose neck Microphone | 2 | |
| Microphone button | 2 | |
| Folding book holder | 2 | |
| Intelligent electric lifting column | 1 | |
| Wheels | 4 | |
| Work Environment | Operating temperature/humidity | 0℃~50℃/20%～80% |
| Storage temperature/humidity | -10℃~60℃/5–95% | |
| Lifespan | 50,000 hours | |
- Computer configuration :
| 32inch PCAP Touch Screen Windows OS | CPU | Integrated i5 processor, 6th gen. RAM4G/8G, ROM 128G/256G/512G |
| Graphics card (optional) | Integrated HD graphics | |
| Sound Card | Integrated audio | |
| Network Card | Onboard Realtek RTL8111E Gigabit LAN | |
| Memory | Standard 4G DDR3, up to 2×DDR3 DIMM | |
| Storage/Hard disk | 128G SSD | |
| Operating system | Windows7/Windows 8/Windows XP/(Win 10 optional) | |
| USB port | Total 4 | |
| Network Interface | 1 | |
| VGA output | 1 | |
| HDMI output | 1 | |
| Audio Output | 1 | |
| Audio Input | 1 | |
| Microphone Input | 1 | |
| Output display motherboard | Main interface: HDMI , VGA | |
| 21.5 inch digital signage screen | Android OS, RAM 1G +32G Storage |
